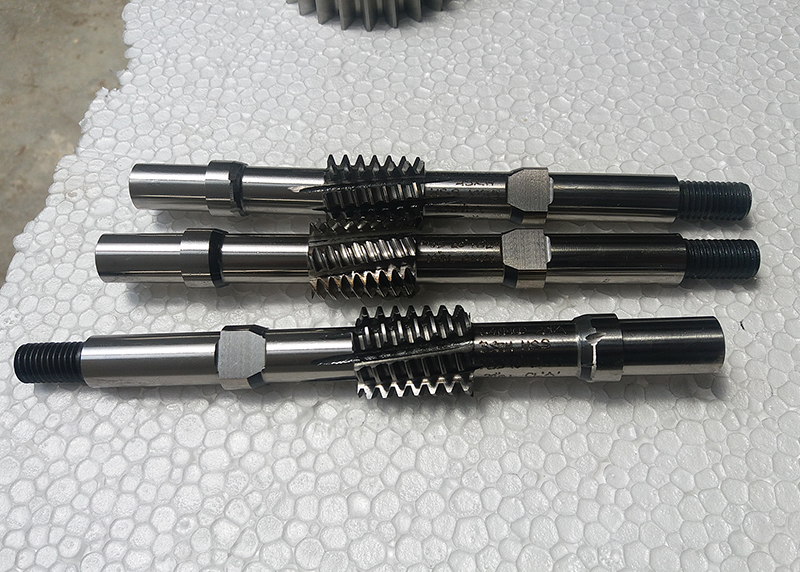

Shank Type Worm Gear Hob Cutters
Shank Type Worm Gear Hob Cutters
Shank type Worm Gear Hob cutters are designed to cut internal teeth worm gears. Wherever internal worm gear tooth has to be cut for finishing, shank type hobs are used.
Shank type Worm gear hobsare designed to cut internal worm teeth of shaft or gear component. Shank type worm hobs have a different design for cutting since they are only designed and used where the bore spindle option is not feasible. These bore-less Long shank type gear hobs has to be designed to mate the internal worm teeth cutting
Internal worms are generated by shank type (without bore) gear hobs with both ends having morse taper shanks with cutting teeth profile in between them to cut accurately. Yash Tools Produces wide range of Gear Hobbing cutters to cutall types of Spur, Straight, Helical, Involute Gear Profiles, Internal & External Worm gears. Our Hobbing cutters are very high precision & high accuracy cutters upto Class AA, A as Per DIN 3968. We design Gear hobs according to the Component or gear data offered by client, standard or non-standard pitches
As per client component speed and feed rate to its hobbing machines, we do advise and recommend them different types of HSS raw material & surface PVD coatings 2-4 microns to have a smooth and better life of cutters.
Specifications of Involute Gear Hob Cutters / Basic Parameters –
Gear Pitch Range –
- 0.20Module to 45 Module
- 96 DP to 0.5 Diametric Pitch
Profile Forms:
- Non-Topping, With Topping, Semi-Topping, With Protuberance, Pre-shaving, Pre-grinding, Chamfer, full fillet etc.
Rotation of Gear hob:
- Right or Left Hand
Start:
- Single, 2 start or Multi Start (Upto 10 start)
Accuracy:
- AA, A, B Ground Finishing (as per DIN 3968 or equivalent AGMA, IS standard) &Machine Relieved “C” with all standard & non-standard profiles
PVD SURFACE COATING:
- 2-4 microns (OPTIONAL) Available in TiN, TiCN, ALTIN, ALCRONA Coatings
Material:
- HSS M-2, M35, PM ASP 30, ASP 52 or any special Required material
