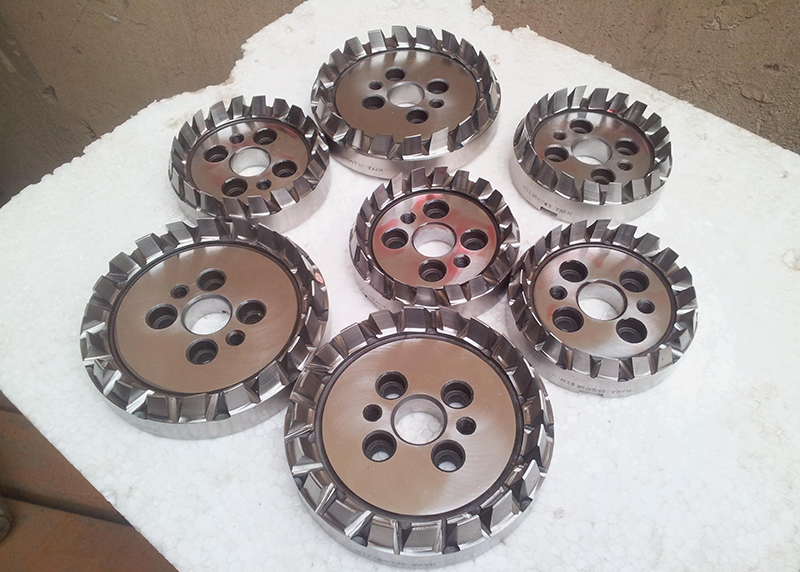

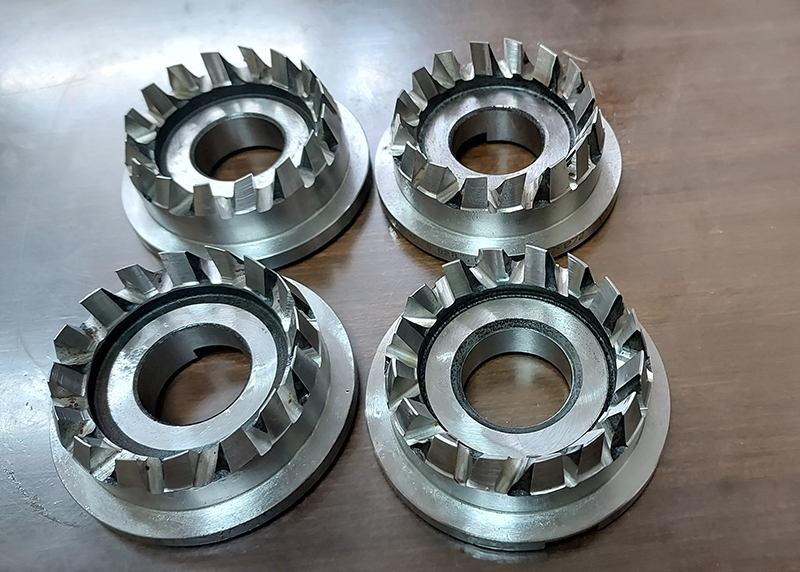

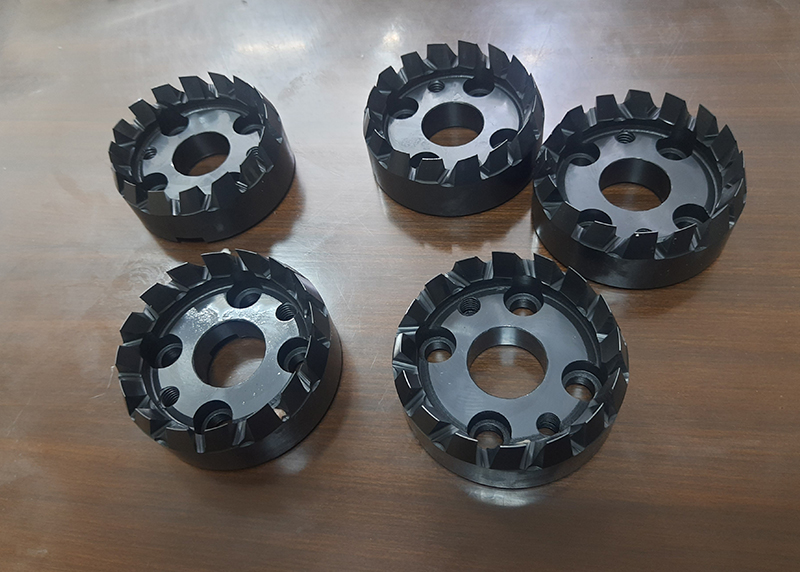

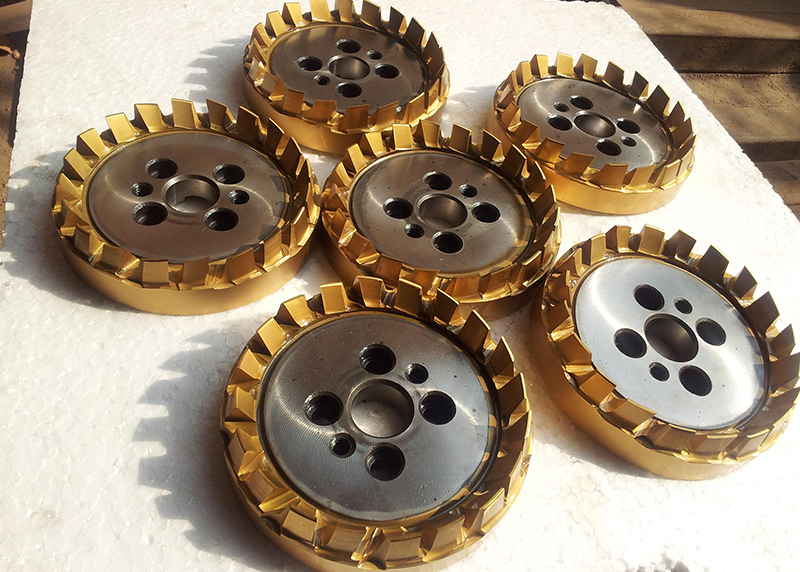

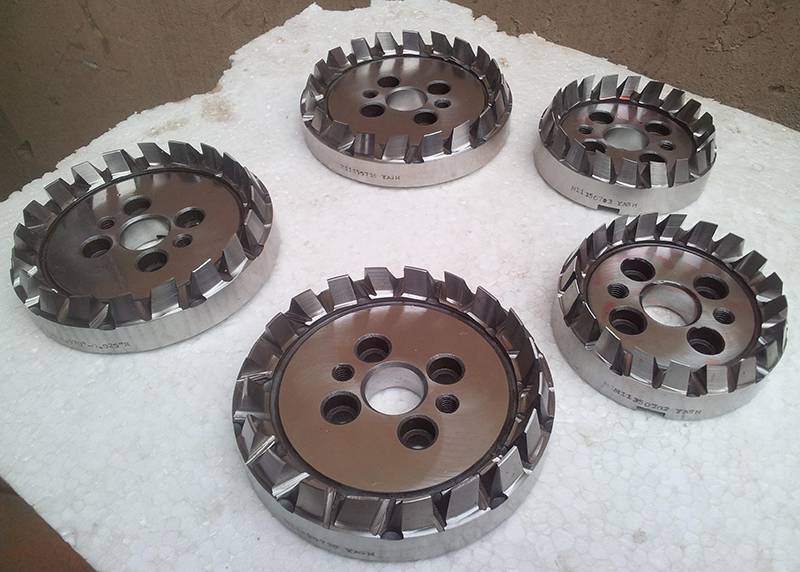

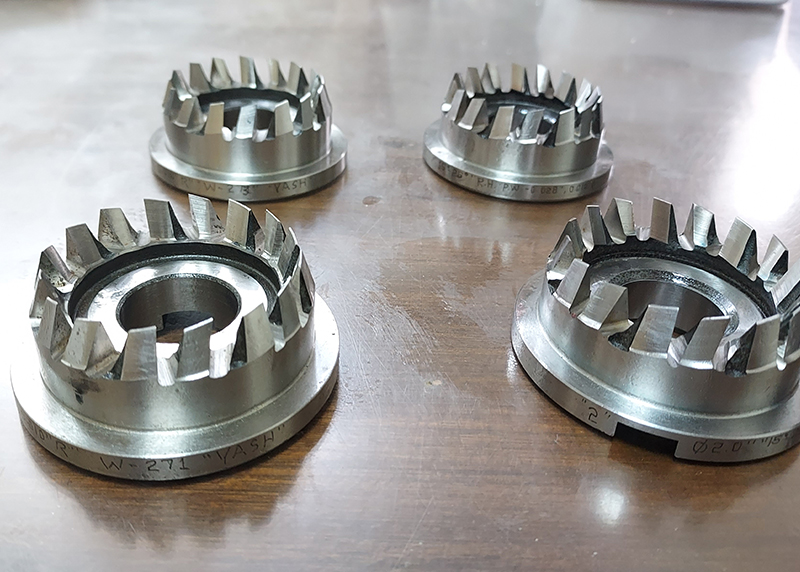

Gleason Solid Body Cutters

Mostly used in Gleason gear generating machines, Solid body cutters are made in HSS M2, M35 or ASP30 raw material as one solid piece with profiling on each tooth of its cutter to generate the matching profile of the spiral gear to cut. With Sizes ranging commonly in dia 1.5”, 2.75”, 3.5”, 4.5” & 5.5”, these cutters do not require any inserts or blades to give the crown or pinion correct profiling. For targeting fast quantity production these are very economically priced and also have good life before they end up.

Solid body cutters are one pc structured cutter used in Gleason spiral bevel generators to cut pinion and gear. No mounting of any blades is required like in other cutter bodies where the blades are mounted or inserted according to do the profiling.

We are specialist in making solid body cutters; we manufacture & export 500 solid body cutters annually in sizes ranging from 1.1” to 6” Dia (with or without Coating)

For cutting Crown pinion roughing / finishing cutters on Gleason Spiral bevel Machines–

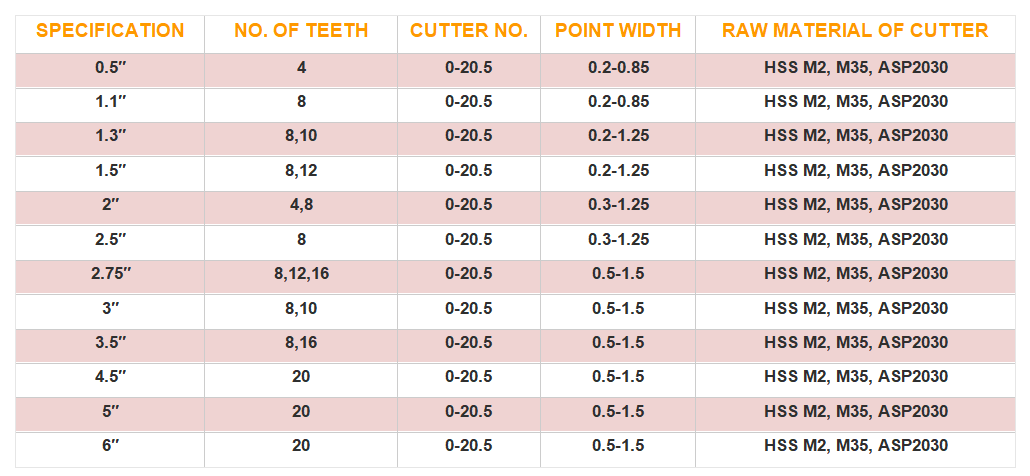

Specifications of Gleason Solid Body Cutters – / Basic Parameters –

Diameter :
  • 1.1" to 6"
No of Teeth :
  • 12, 16 or 20 (OB=? IB=? PW=?)
Materials :
  • HSS M2, M35, ASP 23, ASP 30
Coating :
  • TIN, ALTIN, ALCRONA PRO (as per request)

One
← Previous Next →

Quality - Complete Customer Satisfaction (CCS)

At Yash International, we believe in 3-sigma quality process
  • 1 Maintaining World-class quality products & ensuring deliveries on-time
  • 2 Providing most cost-effective pricing to our clients
  • 3 Always ensuring complete customer satisfaction (CCS)

You will see technology at its best, be it in the components, the advanced production line or the well trained work force. We adhere to the exacting AGMA, DIN, BS, and JIS industry standards to maintain accuracies and preserve precise tolerances To maintain the best quality of the products we have adopted system of mandatory inspection and tests as well as periodic quality audits and system evaluations.

Certifications

We are a ISO 9001:2015 Certified company driven by Professional excellence, Technical competence and Total Quality Management system

MSME REGISTRATION (GOVT OF INDIA) CERTIFICATION\

REGISTERED MEMBER OF FEDERATION OF INDIAN EXPORTS ORGANIZATION (FIEO)

We, Commit ourselves for supplying products that would give complete satisfaction to customer. We will strive to achieve growth and leading position in the market by; supplying consistent quality products to our valued customers.
