Keyway Broaches

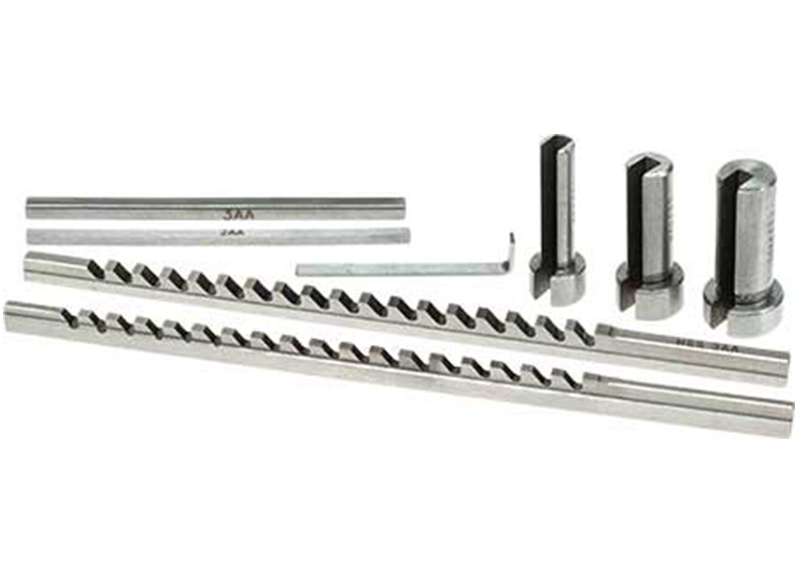

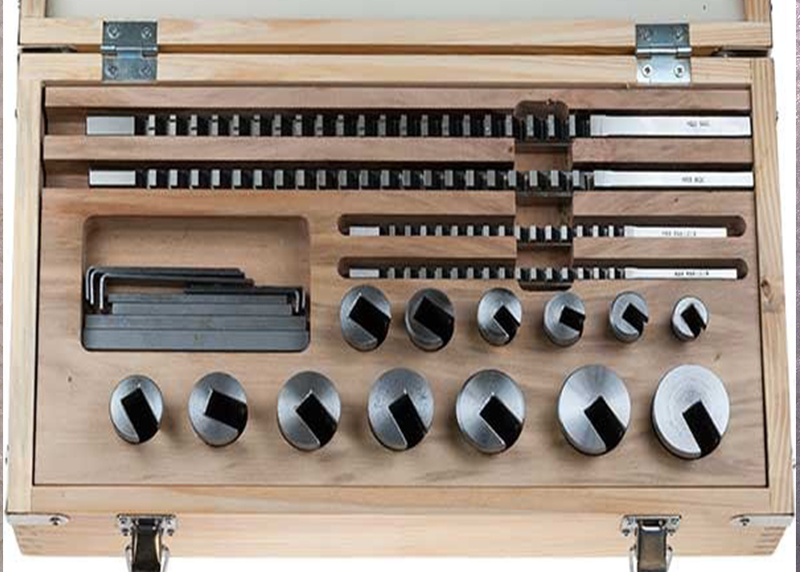

Keyway broaching is done worldwide to generate keyway profiles in any internal gear or any component. Very common and cheapest way of making long keyway cuttings. Keyway broach is one of the most common internal broaches. It to cut internal gear forms, an internal gear broach is used.Metric Keyway Broach (With or Without Chamfer) is used to produce a rectangular slot with or without chamfer of specific dimension in a prebore component.It can also be designed to provide specific chamfer at the corner of the base thus avoiding filing. We manufacture quality keyway broach (with or without chamfer). Keyway broach cuts keyways with ease in the bore of a gear or wheel. Keyway broach set is available in different dimensions to meet our customer’s needs.

We offer superior quality Keyway Broaches that are available in push as well as pull variants. Our Keyway Broach is ideally suited for making inside slot on inside taper or straight bore.

Specifications of Broaching Tools / Broaches –

Type:
  • Push or Pull type
Profile Types to cut:
  • Serration, Straights, Round, Square, Hexagon, Rectangle, Involute
SURFACE COATING: (OPTIONAL)
  • Available in TiN, TiCN, ALTIN, ALCRONA Coatings
MATERIAL:
  • HSS M2, HSS M35
