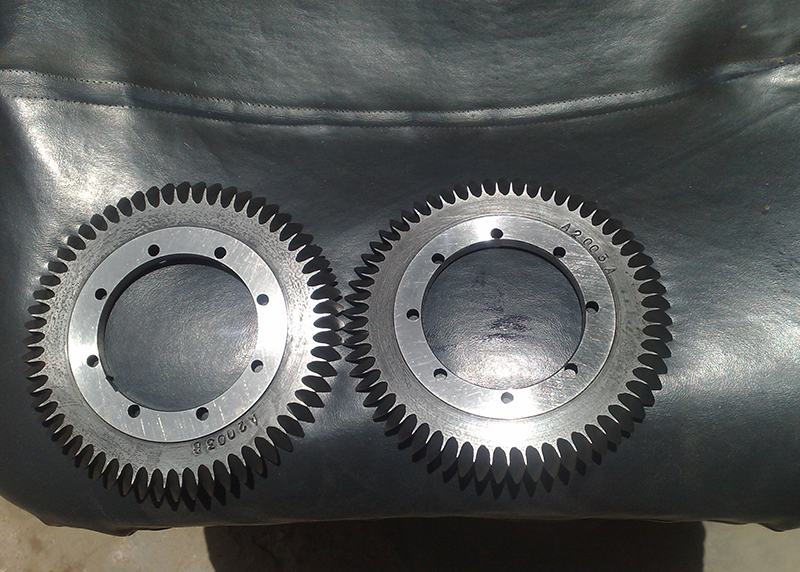

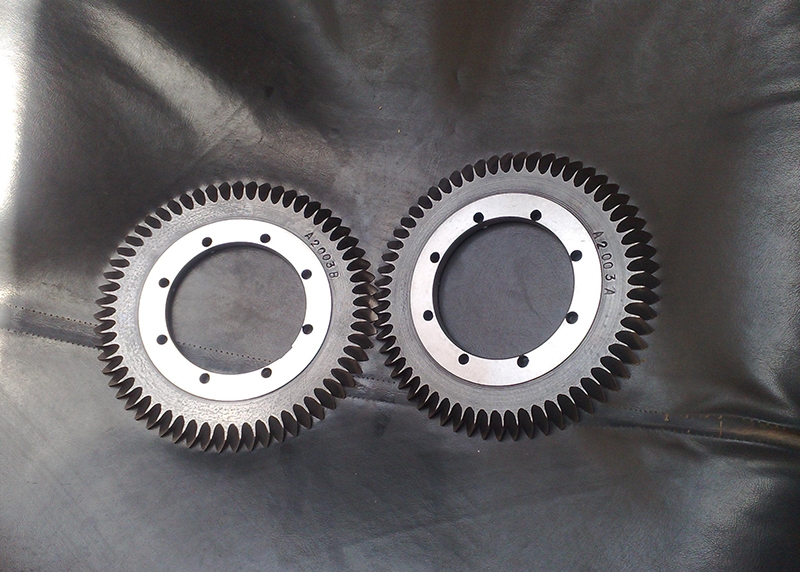

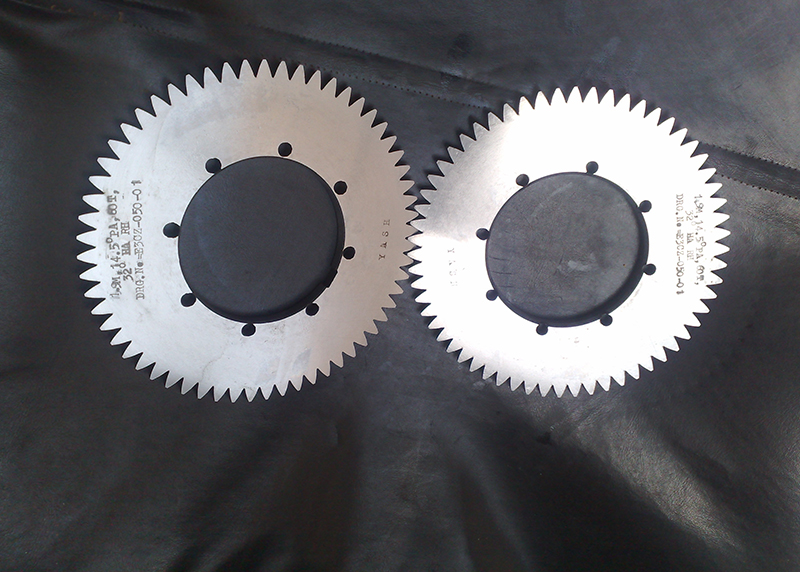

Gear Chamfering & Deburring Cutters
Gear Chamfering & Deburring Cutters
Gear Chamfering Cutters are highly precision cutters which are used for generating gear chamfering and deburring in mostly automobile gear industry. These cutters have the ability to do deburring on both sides of the gear at the same time. These cutters are Made in HSSM2, ASP 23 or ASP30 material
These cutters remove the burrs generated while cutting the edges of tooth very smoothly and fast. Resharpening is done once the cutters are shaded due to chipping in depth and these cutters are re usable to give exact same profile finishing. We can supply the cutters according to request. Mostly these cutters are used for giving chamfer and finishing. We strongly recommend PVD coatings for better life as the cutters are very high precision in nature
Specifications / Basic Parameters – Gear Chamfering & Deburring Cutters
Cutting Forms :
- Bevel Spiral Gears, Spur gears, Helical gears, Involute forms
Accuracy :
- Class “AA”, “A” Ground finishing as per DIN, BS, ASA standards specification
Special features:
- Chamfering, flat or fillet roots
SURFACE COATING : 2-4 microns (OPTIONAL)
- Available in TiN, TiCN, ALTIN, ALCRONA Coatings
Material :
- HSS M-2, M35, ASP 23 or any special required material.
Quality - Complete Customer Satisfaction (CCS)
At Yash International, we believe in 3-sigma quality process
- 1 Maintaining World-class quality products & ensuring deliveries on-time
- 2 Providing most cost-effective pricing to our clients
- 3 Always ensuring complete customer satisfaction (CCS)
You will see technology at its best, be it in the components, the advanced production line or the well trained work force. We adhere to the exacting AGMA, DIN, BS, and JIS industry standards to maintain accuracies and preserve precise tolerances To maintain the best quality of the products we have adopted system of mandatory inspection and tests as well as periodic quality audits and system evaluations.
Certifications
We are a ISO 9001:2015 Certified company driven by Professional excellence, Technical competence and Total Quality Management system
MSME REGISTRATION (GOVT OF INDIA) CERTIFICATION\
REGISTERED MEMBER OF FEDERATION OF INDIAN EXPORTS ORGANIZATION (FIEO)
We, Commit ourselves for supplying products that would give complete satisfaction to customer. We will strive to achieve growth and leading position in the market by; supplying consistent quality products to our valued customers.
