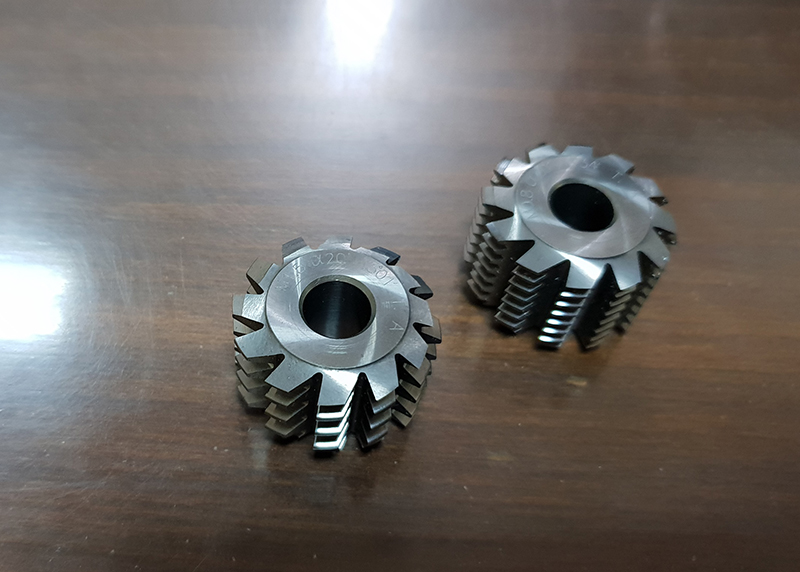

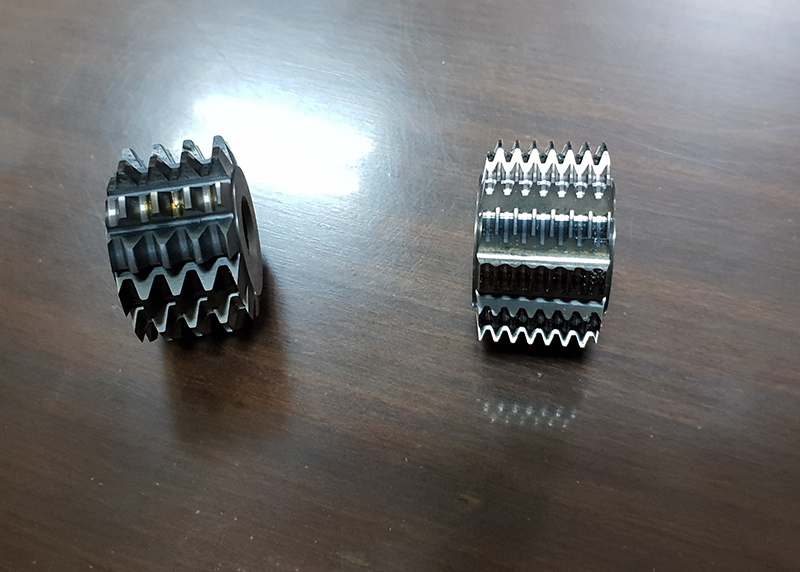

Micro Gear Hob cutters
Micro Gear Hob cutters
Micro gear hobs are generally made to cut gears having small refine micro gear pitches, such micro pitch gearing has to be done to achieve high finishing and accuracy. Many industries such as automobiles, clock industry, precision gearing requires gear Hobbing to generate very small pitches
Starting from 0.15 Module to 1.0 module.
These are very high precision gear hobs and are made with or without topping feature in M35, ASP30 Material generally.
Our HSS made Gear hobs are specifically manufactured for generating profile of gears of maximum high accuracy for achieving finishing of gears as per DIN, ANSI, BS standards
Yash Tools Produces wide range of MICRO profile Gear Hobbing cutters to cutall types small pitch profiles used in various industries. Our manufactured cutters are very high precision & high accuracy cutters uptoAAA, AA, A as Per DIN 3968. We design Gear hobs according to the Component or gear data offered by client, standard or non-standard pitches. We use High Grain extensive & QualityHigh Speed Steel& powder Metallurgy Steeldirectly from All over world Steel mills to manufacture our supplied different types of Gear hobs.
Specifications of Involute Gear Hob Cutters / Basic Parameters –
Gear Pitch Range –
- 0.15Module to 1.00 Module
- 96 DP to 25 Diametric Pitch
Profile Forms:
- Non-Topping, With Topping, Semi-Topping, With Protuberance, Pre-shaving, Pre-grinding, Chamfer, full fillet etc.
Rotation of Gear hob:
- Right or Left Hand
Start:
- Single, 2 start or Multi Start (Upto 10 start)
Accuracy:
- AA, A, B Ground Finishing (as per DIN 3968 or equivalent AGMA, IS standard) &Machine Relieved “C” with all standard & non-standard profiles

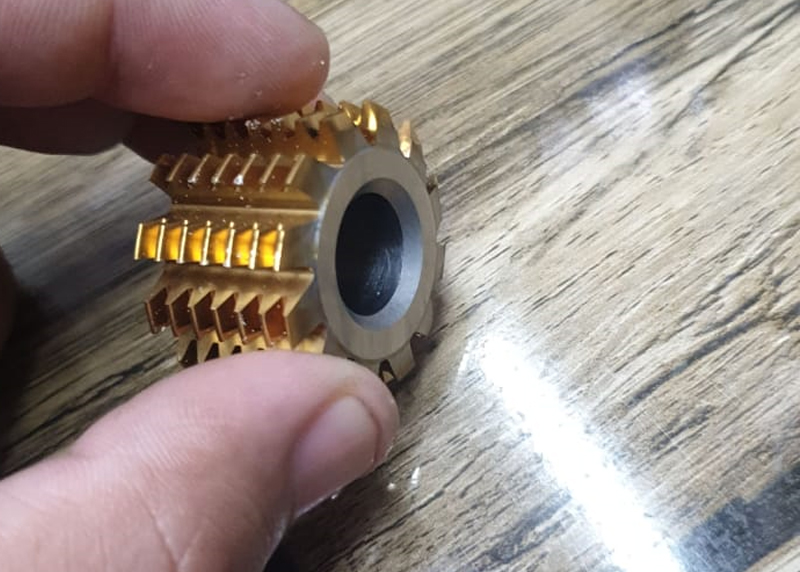

PVD SURFACE COATING:
- 2-4 microns (OPTIONAL) Available in TiN, TiCN, ALTIN, ALCRONA Coatings
Material:
- HSS M-2, M35, PM ASP 30, ASP 52 or any special Required material
